QSGT-12A

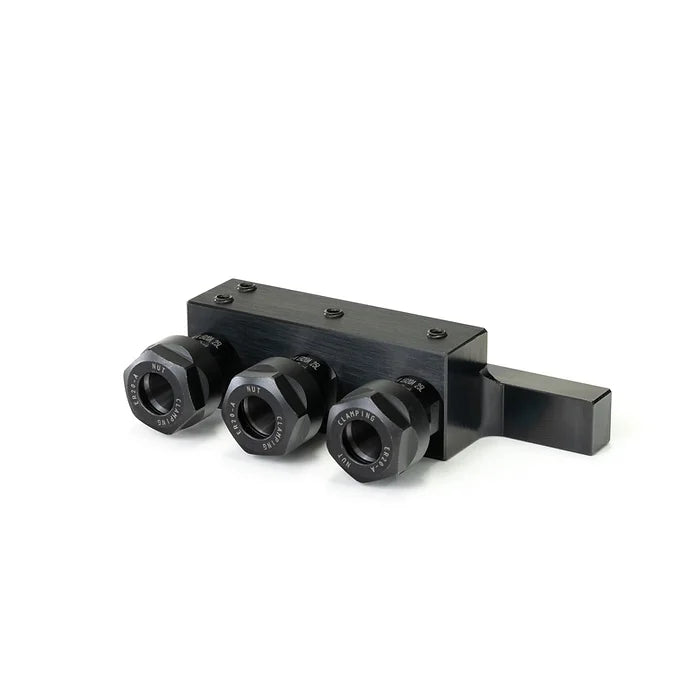

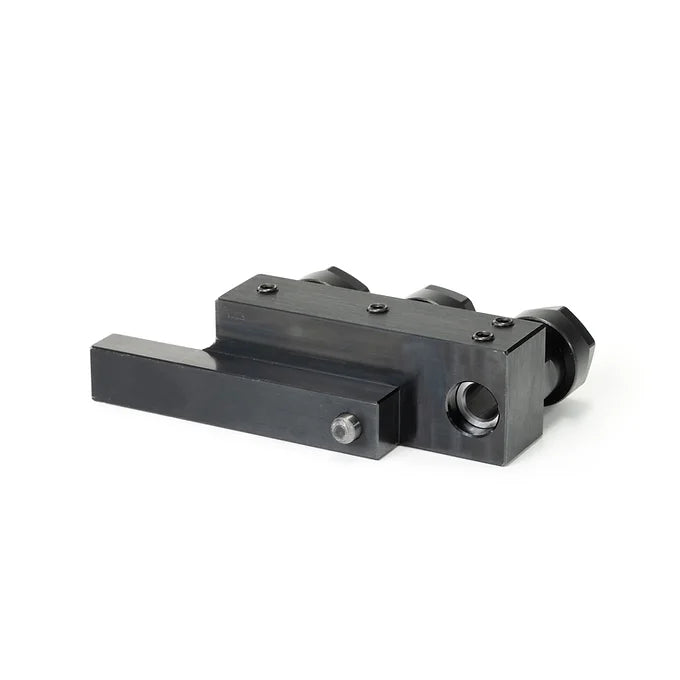

The QUICKSET GT gang tool holder is a high quality and cost effective way to maximize production on your CNC or Manual Lathe.

Made to fit square shank tool holders/pockets.

The easy to set up design enables single tool position to become gang tooling capable. Streamlining machine setups and boosting production.

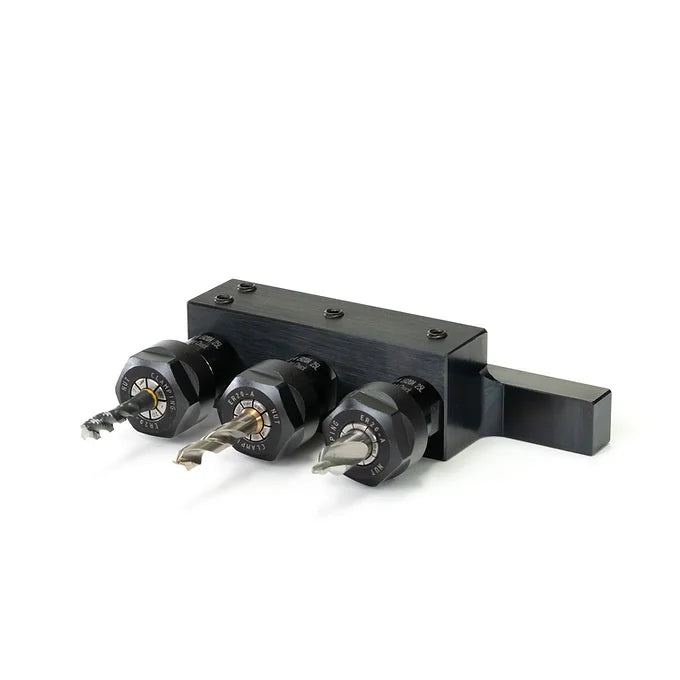

Increase Tool Capacity by drilling, tapping, boring, reaming, and more, on a single tool position.

Reducing cycle time and set-ups.

Tool Positions: 3

Centerline Height: .750" (19.05 mm)

Center-Center distance: 1.75" (44.45 mm)

Bore Size: .750" (19.05 mm)

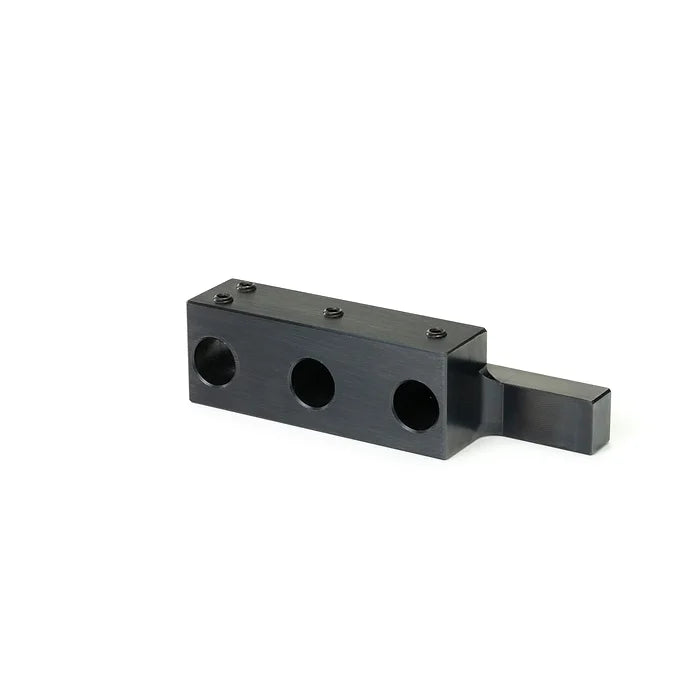

2 blind bores. Ideal for holding our straight shank ER20 collet chucks or any other tool with a short 3/4" round shank.

1 through bore. Ideal for holding our straight shank ER20 collet chucks or any other tool with a 3/4" round shank.

Overall Dimensions:

• Length: 6.25" (158.75 mm)
• Width: 1.875" (47.62 mm)
• Height: 1.66" (42.16 mm)

Weight: 4.5 lbs. or 2 kg. (Weight includes 3 ER20 collet chucks)

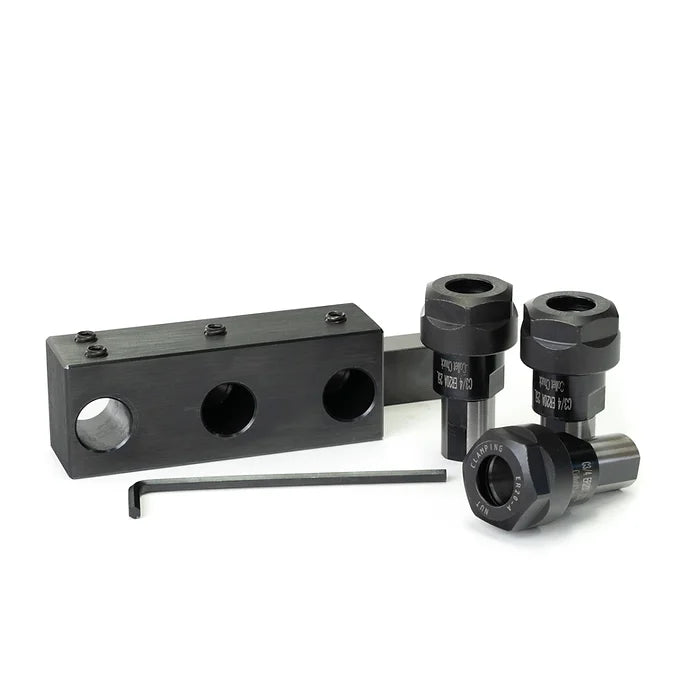

• The Holder
• Three (3) ER20 collet chucks. (additional available)
• One (1) Hex Key
• Four (4) Set Screws pre-installed
• One (1) 3/8" Dowel Pin pre-installed
